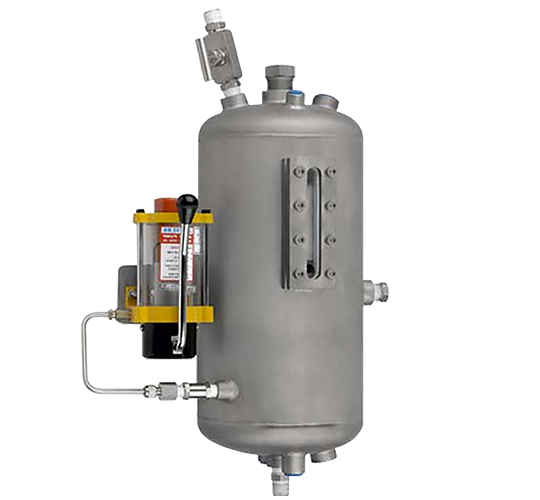

A thermosyphon pot is a reservoir of either in carbon steel or stainless steel. The capacity of the reservoir is generally 10 liters at normal liquid lever (NILL). It can be equipped with or without cooling coil. It is provided with hand pump for the make up of buffer or barrier liquid loss. Ports are available at the top top dish end for connections of pressure guage, pressure switch and level switch. Standard thermosyphon pot is available with weld type lever gauge.
1, Thermosyphon Pot is used in double mechanical seals so as to supply external barrier liquid which eliminated the leakage of hazardous process liquid into atmosphere.
2, Due to convection current, thermosyphon pots used in double seals are used to take away the heat generated across the faces.
3, Thermosyphon Pots used in double seats with unpressurised buffer liquid acts as a quenching device which dissolve the solids particles when inner seal liquid leaks into the outer seals chamber.
